Adaptive Ng-acceleration in Magritte

For optically thick media, computing NLTE line radiative transfer involves a slow, iterative convergence process. Ng-acceleration helps to speed this up by extrapolating the changes in the computed level populations. When applying Ng-acceleration, the following steps take place: First, one computes the level populations for N default radiative transfer iterations. Afterwards, one extrapolates the computed level populations. This is repeated until the level populations are converged. To change the number of iterations between each Ng-acceleration step (= order of Ng-acceleration), one can call

parameters.Ng_acceleration_mem_limit = N #(default = 9)

In Magritte, we make two modifications to Ng-acceleration:

1. We allow the Ng-acceleration to happen earlier than every N steps, if the relative change in level populations predicted by the Ng-acceleration steps would be less than the relative change when comparing the current level populations with the level populations of the previous iteration. In our experience, this prevents the algorithm from wasting time by computing too much NLTE iterations without doing a Ng-acceleration step. To disable this behavior, one can call

parameters.use_adaptive_Ng_acceleration = False #(default = True)

2. We can allow the Ng-acceleration to ignore the first iteration (and the first iteration after each Ng-acceleration step) when computing the extrapolation. As Ng-acceleration implicitly assumes some kind of linearity for the convergence for the level populations, pruning the first step can impact the convergence behavior. To change the number of iterations M which we exclude from Ng-acceleration, one can set

parameters.Ng_acceleration_remove_N_its = M #(default = 0)

Note

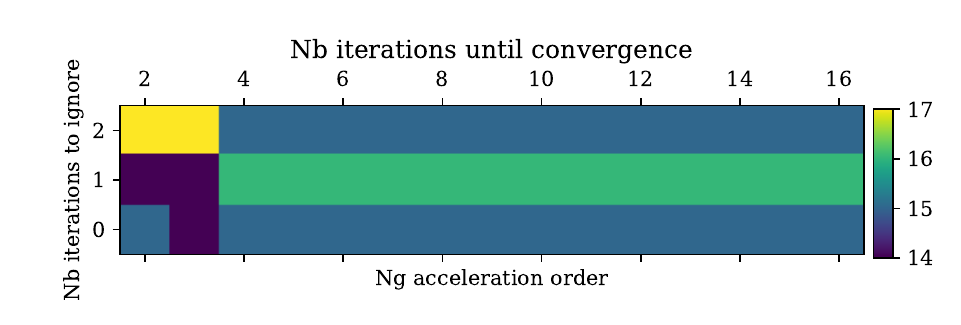

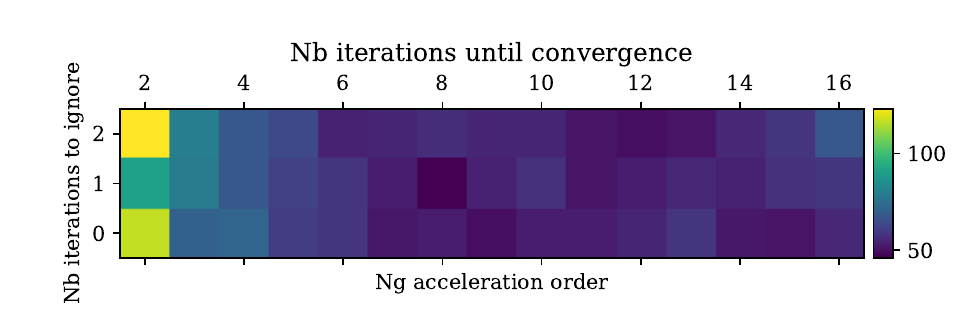

These settings have been obtained by figuring out which options result in the fastest convergence for the optically thick Van Zadelhoff (2002) benchmarks. See the tables below for a more informed decision on how these parameters might influence the computation time.
